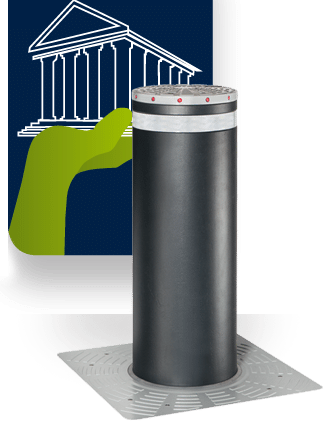

J275 HA 2K

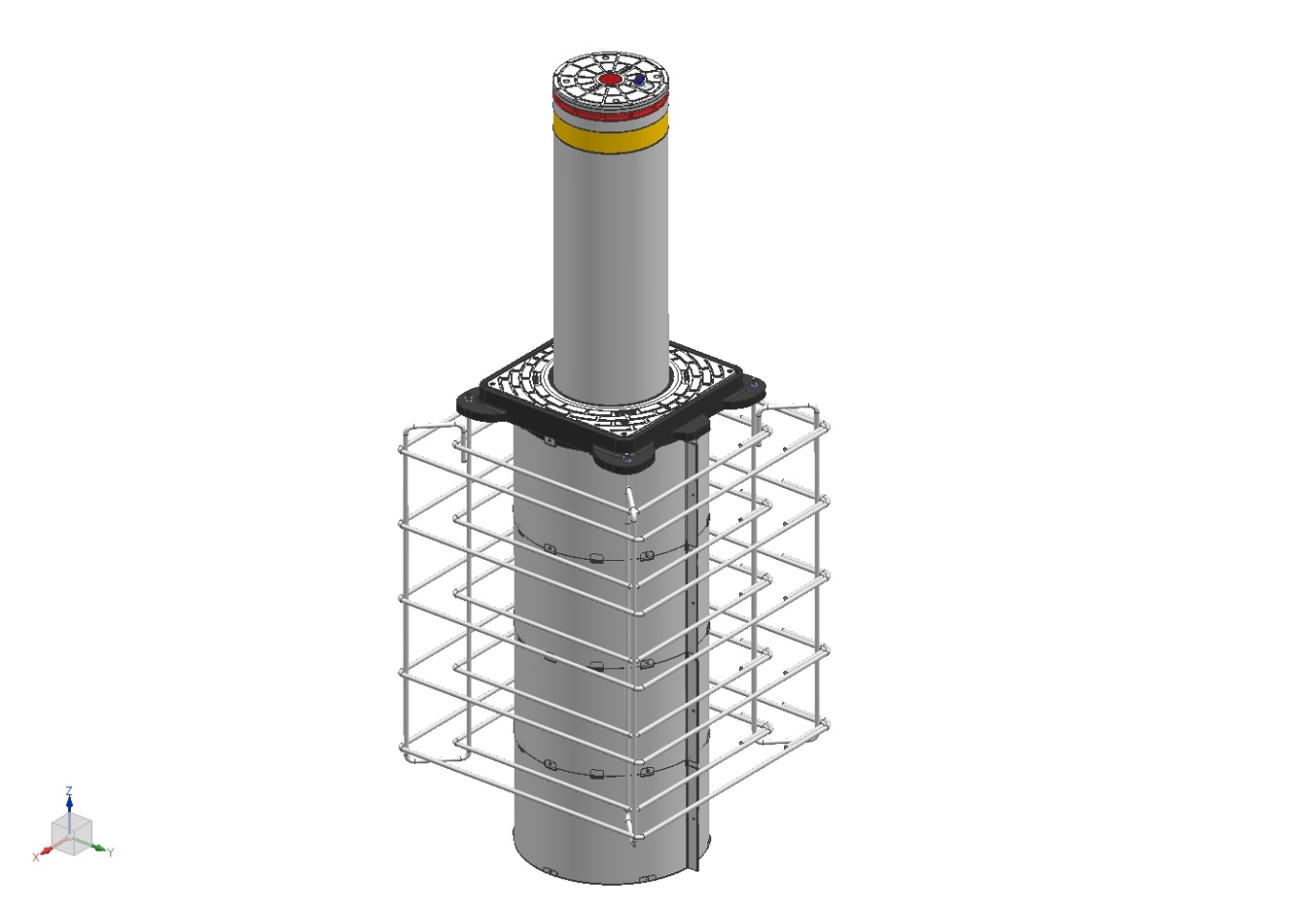

J275 HA 2K - Image 2

J275 HA 2K

Our strength is the wide range: whatever the need, ranging from residential security installation to the highest level of anti-terrorism securities, we have it all.
We offer wide range of bollards that goes beyond just the function of protection, it enhances the appeal of the architecture and the streetscape. Our bollards models are available in different materials, designs , protection level meant for protecting diverse type of premises. We can offer customized solutions matching the properties architecture & landscape. Our products and accessories always provide for the possibility to find the ideal solution to satisfy any needs regarding management, safety, and design.

Category:

Description

J275 2K Range is recommended for vehicular access control and perimeter protection in critical areas. Able to arrest a 6.800kg truck driving at 50km/h in dual installation

  1. Guaranteed for high frequency use
  2. Integrated hydraulic unit
  3. Simplified maintenance (possible with just one person)
  4. “Gentle stop” function to guarantee a soft impact when lowering
  5. Anti-burglar head. Protected with armored lock to prevent unauthorized manual lowering
  6. Capable of stopping 6,800 kg lorries launched at 50 km / h in dual-unit installations (M30 Class)

Technical Specifications

Model  J275 HA_2K H800   J275 HA_2K H800 stainless steel
Drive  Hydraulic unit  Hydraulic unit
Cylinder height from ground [mm]  800  800
Cylinder diameter [mm]  275  275
Cylinder material  Steel SJ235JR EN 10219

(12,5mm thick)

 AISI 316L satinato (spessore 12 mm)
Cylinder surface  Cataphoresis and polyester powder painted

Dark grey metallized RAL 7021

 Satin finishing
Head  Aluminium RAL 9006  Aluminium RAL 9006
Rising time [s]  ~8  ~8
Lowering time [s]  ~4,5  ~4,5
Emergency automatic lowering  YES (OPTION)  YES (OPTION)
Emergency lowering time [s]  ~2  ~2
Safety pressure switch  YES (OPTION)  YES (OPTION)
Emergency manual lowering  Accessible by key

(armored lock)

 Accessible by key

(armored lock)
Gentle Stop function  YES  YES
Power supply  230V ~ 50(60Hz)  230V ~ 50(60Hz)
Max power consumption [W]  575  575
Hydraulic unit protection Index  IP67  IP67
Suggested Usage  Intensive  Intensive
Reflective strip height [mm]  55  55
Reflective strip colour  Orange  Orange
Impact resistance [J]  85.000  134.000
Break-in resistance in single unit configuration [J]  287.000  414.000
Break-in resistance in two units configuration [J]  M30 ranking (656.000J)  M30 ranking (656.000J)
Total weight [kg]  220  220
Pit weight [kg]  60  60
Bollard weight [kg]  160  160
Operating temperature   -15 °C / +55 °C  -15 °C / +55 °C
Operating temperature with heater (accessory)  -25 °C / +55 °C  -25 °C / +55 °C
Underground product dimensions WxDxH  [mm]  560 x 560 x 1.220  560 x 560 x 1.220
Required excavation dimensions WxDxH  [mm]  1.000 x 1.000 x 1.540  1.000 x 1.000 x 1.540
Supply cable  16+1 conductors –min. section 1,5mm (not supplied)  16+1 conductors –min. section 1,5mm (not supplied)
Max cable length [m]  50  50
