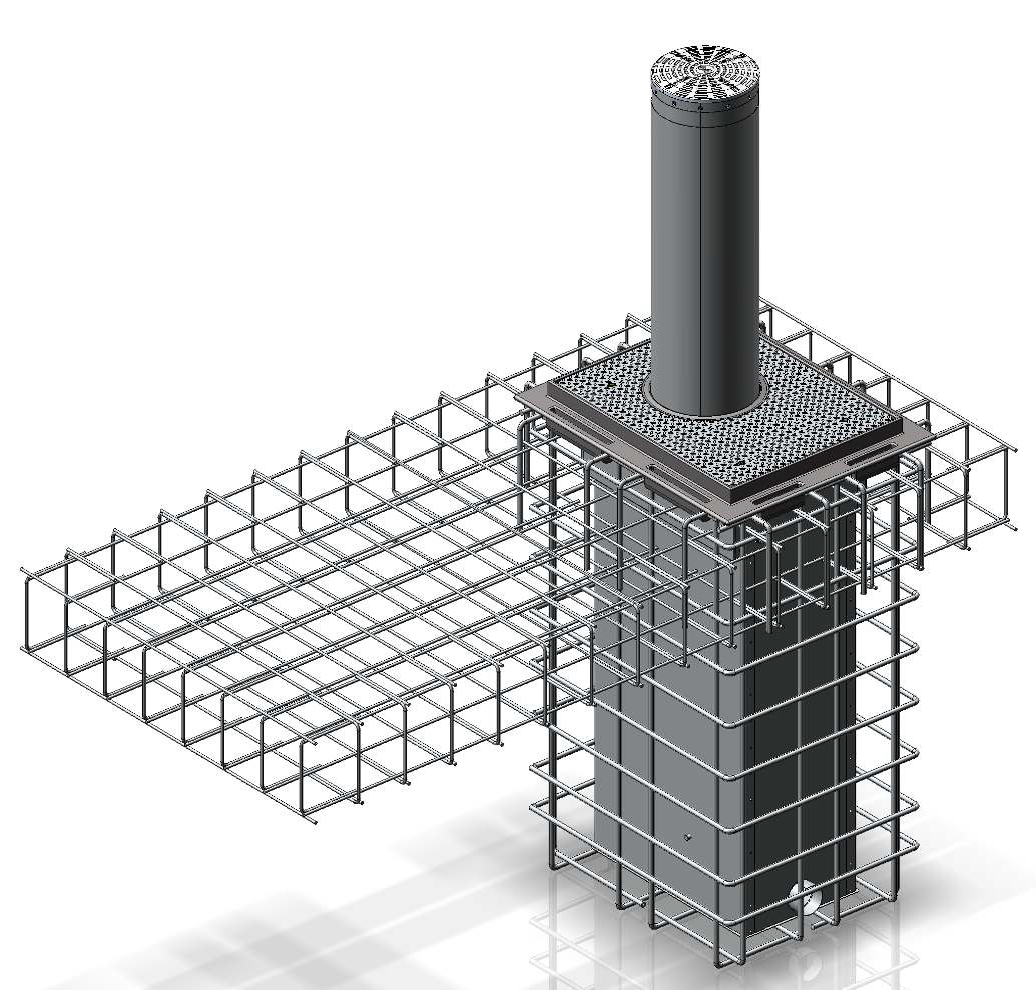

J355 HA M50
J355 HA M50 - Image 2

J355 HA M50

Our strength is the wide range: whatever the need, ranging from residential security installation to the highest level of anti-terrorism securities, we have it all.
We offer wide range of bollards that goes beyond just the function of protection, it enhances the appeal of the architecture and the streetscape. Our bollards models are available in different materials, designs , protection level meant for protecting diverse type of premises. We can offer customized solutions matching the properties architecture & landscape. Our products and accessories always provide for the possibility to find the ideal solution to satisfy any needs regarding management, safety, and design.

Category:

Description

J355 M50 Range is recommended for vehicular access control and perimeter protection in critical areas. Able to arrest a 7.500kg truck driving at 80km/h in single unit installation

  1. Tested according to PAS 68:2013 and IWA 14-1:2013 Standards
  2. Impact resistance class N3 7.500-80 in SINGLE CONFIGURATION
  3. Able to stop a 7,500 kg lorry travelling at 80Km/h (=50M/h)
  4. Raised position lock guaranteed even in the event of a power cut
  5. Also available in EFO (Emergency Fast Operation) version for very rapid rising
  6. Integrated hydraulic unit

Technical Specifications

J Series Model  J355 M50 HA H1.200  J355 M50 HA H1.200 INOX  J355 M50 HA EFO H1.200  J355 M50 HA EFO H1.200 INOX
Drive  Hydraulic unit  Hydraulic unit  Hydraulic unit  Hydraulic unit
Cylinder height from ground [mm]  1.200  1.200  1.200  1.200
Cylinder diameter [mm]  355  355  355  355
Cylinder material  Steel S355JR EN 10210

(30mm thick)

 Steel S355JR EN 10210

(30mm thick)

 Steel S355JR EN 10210

(30mm thick)

 Steel S355JR EN 10210

(30mm thick)
Cylinder surface  Cataphoresis and polyester powder painted

Dark grey metallized RAL 7021

 Jacket AISI 316L satin stainless steel  Cataphoresis and polyester powder painted

Dark grey metallized RAL 7021

 Jacket AISI 316L satin stainless steel
Cylinder head and ground crown  AISI 304 stainless steel  AISI 304 stainless steel  AISI 304 stainless steel  AISI 304 stainless steel
Rising time [s]  ~6  ~6  ~6  ~6
Emergency fast rising   NO  NO  YES (E.F.O)  YES (E.F.O)
Emergency fast  rising time [s]  –  –  ~2  ~2
Lowering time [s]  ~3  ~3  ~3  ~3
Emergency manual lowering  YES  YES  YES  YES
Power supply  230V ~ 50(60Hz)  230V ~ 50(60Hz)  230V ~ 50(60Hz)  230V ~ 50(60Hz)
Max power consumption [KW]  ~3,9  ~3,9  ~3,9  ~3,9
Hydraulic unit protection Index   IP67  IP67  IP67  IP67
Suggested Usage  Perimeter protection  Perimeter protection  Perimeter protection  Perimeter protection
Reflective strip height [mm]  55  55  55  55
Reflective strip colour  White  –  White  –
Break in resistance [J]  1.852.000  1.852.000  1.852.000  1.852.000
Total weight [kg]  1.085  1.095  1.085  1.095
Pit weight [kg]  235  235  235  235
Bollard weight [kg]  850  860  850  860
Operating temperature   -15 °C / +55 °C  -15 °C / +55 °C  -15 °C / +55 °C  -15 °C / +55 °C
Operating temperature with heater (accessory)  -40 °C / +55 °C  -40 °C / +55 °C  -40 °C / +55 °C  -40 °C / +55 °C
Required excavation dimensions WxDxH  [mm]  3.100 x 1.600 x 1.850  3.100 x 1.600 x 1.850  3.100 x 1.600 x 1.850  3.100 x 1.600 x 1.850
