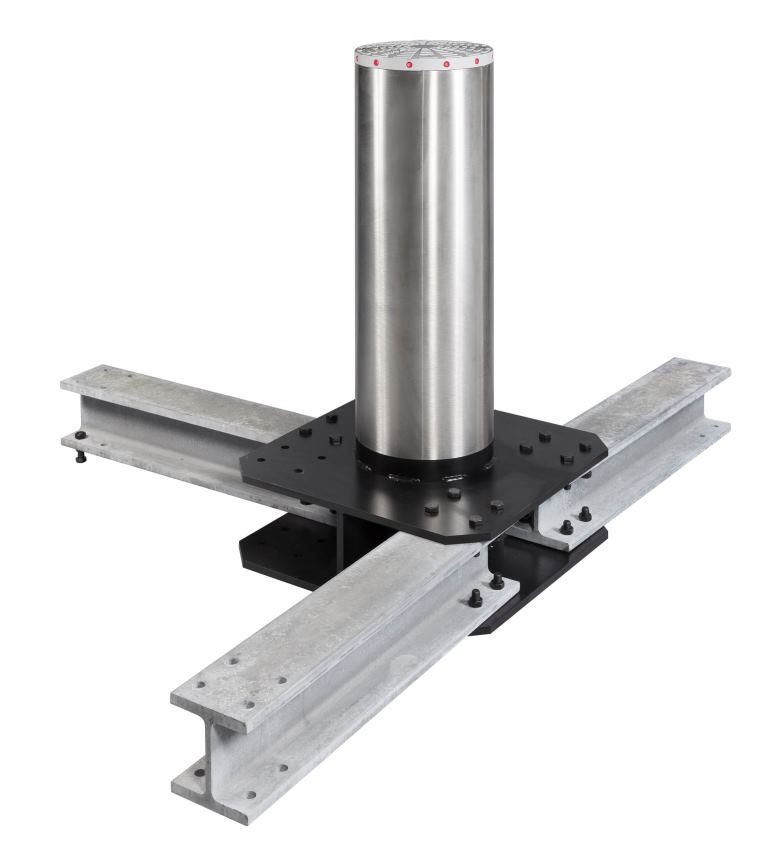

J355 F M30

Our strength is the wide range: whatever the need, ranging from residential security installation to the highest level of anti-terrorism securities, we have it all.
We offer wide range of bollards that goes beyond just the function of protection, it enhances the appeal of the architecture and the streetscape. Our bollards models are available in different materials, designs , protection level meant for protecting diverse type of premises. We can offer customized solutions matching the properties architecture & landscape. Our products and accessories always provide for the possibility to find the ideal solution to satisfy any needs regarding management, safety, and design.

Category:

Description

J355 M30-P1 Range is recommended for vehicular access control and perimeter protection in critical areas. Able to arrest a 6.800kg truck driving at 50km/h in single unit installation.

  1. Tested according to ASTM F 2656-07 American standards for installations in double units
  2. Able to stop a 6,800 kg lorry travelling at 50Km/h (=30M/h)
  3. “Shallow Mounted” product: very low excavation depth needed
  4. Total aesthetic consistency with other retractable bollards (HA); perfect for mixed installations

Technical Specifications

J Series Model  J355 M30 F H1000  J355 M30 F H1000 INOX
Cylinder height from ground   1000mm  / 39.4 inches  1000mm  / 39.4 inches
Cylinder diameter  355mm / 14 inches  355mm / 14 inches
Cylinder material  Steel S355JR EN 10210

(16mm / 0.6 inches thick)

Steel S355JR EN 10210

(16mm / 0.6 inches thick)

Cylinder surface  Cataphoresis and polyester powder painted

Dark grey metallized RAL 7021

AISI 316L satin stainless steel  jacket
Head  AISI 304 stainless steel  AISI 304 stainless steel
Suggested Usage  Perimeter protection  Perimeter protection
Reflective strip height   55mm / 2.2 inches  55mm / 2.2 inches
Reflective strip colour  White  White
Break in resistance [J]  656000

(2 units installations)

656000

(2 units installations)

Total weight   652 kg / 1450 pounds  655 kg / 1450 pounds
Total weight including packaging  707 kg / 1560 pounds  710 kg / 1565 pounds
Excavation dimensions for a 2 units array (WxDxH)  3800 x 2300 x 350mm /

150 x 90 x 14 inches *

3800 x 2300 x 350mm /

150 x 90 x 14 inches *
