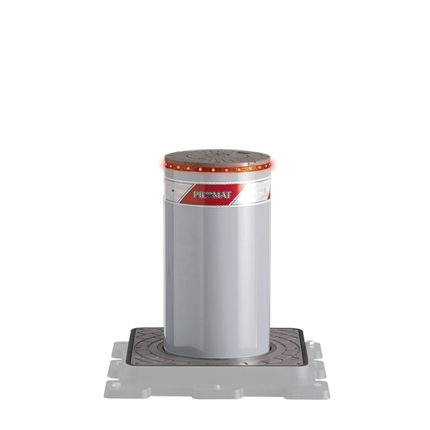

275/P 500A

275/P 500A

Our strength is the wide range: whatever the need, ranging from residential security installation to the highest level of anti-terrorism securities, we have it all.
We offer wide range of bollards that goes beyond just the function of protection, it enhances the appeal of the architecture and the streetscape. Our bollards models are available in different materials, designs , protection level meant for protecting diverse type of premises. We can offer customized solutions matching the properties architecture & landscape. Our products and accessories always provide for the possibility to find the ideal solution to satisfy any needs regarding management, safety, and design.

Category:

Description

Automatic hydraulic bollards with built-in pump are the top line products of PILOMAT range. P series includes a wide selection of automatic bollards different in diameter, height, protection rating and performance.

The 275/P 500A bollard is recommended for use in any pedestrian areas, private parkings, business parkings, private driveways, business driveways, commercial driveways.

The 275/P 500A is available with a large number of optional accessories that allow you to customize your system according to your security needs.

Technical Specifications

Cylinder Material  INOX X5CrNi 18-10 STAINLESS
Cylinder Diameter  273mm
Cylinder Thickness  500mm
Cylinder Stainless Steel Thickness  6mm
Cylinder Stainless Steel Finish  Anti-Corrosion Treatment – Standard Painting Grey Anthracite

Or Brushed
Other Moving Cylinder Finish  Ribs On Cylinder’s Surface
Reflecting Adhesive Strip  Yes – Height 55mm
Rising Speed  15cm/s
Lowering Speed  25cm/s
Manual Emergency Lowering  Yes (also for version with automatic lowering if power failed)
Safety Reversal Pressure Switch  Yes
Connection Line To Control Unit  Standard 10m (Max. Length 80m – With Heating Resistance Max. 60m)
Voltage For Control Unit  230Vac (+/- 10%) 50/60Hz
Hydraulic Pump  Built-in the bollard
Protection Class  IP67
Type Of Use  Intensive – Life Average 3.000.000 Movements – 2000 Movements/Day
Impact Resistance (Without Deformation)  40.000 J
Breakout Resistance  250.000 J
Operating Temperature  -40 °C +70 °C (for temperatures lower than -10 °c use the heating resistance)
