275/P10 600A

275/P10 600A

Our strength is the wide range: whatever the need, ranging from residential security installation to the highest level of anti-terrorism securities, we have it all.
We offer wide range of bollards that goes beyond just the function of protection, it enhances the appeal of the architecture and the streetscape. Our bollards models are available in different materials, designs , protection level meant for protecting diverse type of premises. We can offer customized solutions matching the properties architecture & landscape. Our products and accessories always provide for the possibility to find the ideal solution to satisfy any needs regarding management, safety, and design.

Category:

Description

Automatic hydraulic bollards with built-in pump are the top line products of PILOMAT range. P series includes a wide selection of automatic bollards different in diameter, height, protection rating and performance.

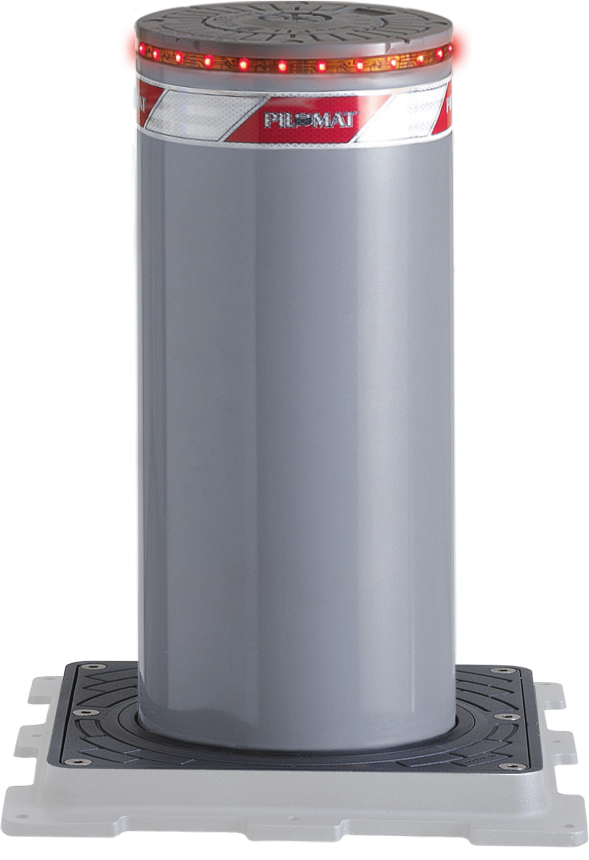

PILOMAT 275/P10 600A is a variant of PILOMAT P SERIES, which has the same general features, but the cylinder is thicker in order to increase the resistance of breakage. It is typically used in business and industry, combined with the classical gates in order to improve the level of passive safety, preventing theft of vehicles and its cargo inside the area.

The 275/P10 600A is available with a large number of optional accessories that allow you to customize your system according to your security needs.

Technical Specifications

Cylinder Material  S235JR NORMAL STEEL – X5CrNi 18-10 ( AISI 304) STAINLESS STEEL X5CrNiMo 17-12-2 STAINLESS STEEL
Cylinder Diameter  273mm
Cylinder Height  600mm
Cylinder Thickness  10mm
Movement Principle  Hydraulic
Cylinder Normal Steel Finish  Anti-Corrosion Treatment – Grey Anthracite Standard Painting
Cylinder Stainless Steel Finish  Grey Anthracite Standard Painting Or Brushing
Reflecting Adhesive Strip  Standard – Height 55mm
Rising Speed  15cm/s (optional: E.F.O. Rising Time 1,5s)
Lowering Speed  30cm/s
Manual Emergency Lowering  Standard
Safety Reversal Pressure Switch  Standard
Connection Line To Control Unit  Standard 10m (Max. Length 80m – With Heating Resistance Max. 50m)
Voltage For Control Unit  230/400VAC (+/- 10%) 50/60HZ
Hydraulic Pump  Built-in the bollard
Protection Class  IP67
Type Of Use  Intensive – 2.000 Cycles/Day
Life Units  3.000.000 Cycles
Impact Resistance (Without Deformation)  40.000 J Certified TUV Rheinland
Breakout Resistance  400.000 J
Nominal Operating Temperature  -40 °C +70 °C (for low temperatures see the heating resistance)
