Description
Automatic hydraulic bollards with pump in the control unit housing. The PL series automatic bollards are the products with the best quality/price ratio of the hydraulic PILOMAT range.

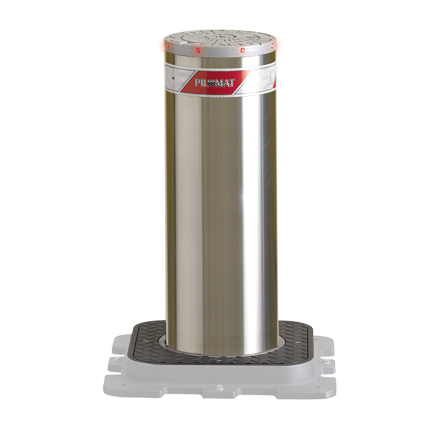

The 220/PL 600A bollard is recommended for use in any pedestrian areas, private parking, business parking, private driveways, business driveways, commercial driveways.
The 220/PL 600A is available with a large number of optional accessories that allow you to customize your system according to your security needs.
Technical Specifications
| Cylinder Material | S235JR NORMAL STEEL – X5CrNi 18-10 (AISI 304) STAINLESS STEEL |
| Cylinder Diameter | 220mm |
| Cylinder Height | 600mm |
| Cylinder Thickness | 4mm |
| Cylinder Thickness Stainless Steel | 4mm |
| Cylinder Normal Steel Finish | Anti-Corrosion Treatment – Standard Painting Grey Anthracite |
| Cylinder Stainless Steel Finish | As above or brushed |
| Reflecting Adhesive Strip | Yes – Height 55mm |
| Rising Speed | 12cm/s |
| Lowering Speed | 25cm/s |
| Manual Emergency Lowering | Yes (also for version with automatic lowering if power failed) |
| Safety Reversal Pressure Switch | Yes |
| Connection Line To Control Unit | Standard 10m (Max. Length 20m) |
| Voltage For Control Unit | 230/400 Vac 50/60Hz |
| Hydraulic Pump | In the control unit |
| Protection Class | IP67 |
| Type Of Use | Intensive – Life Average 3.000.000 Movements – 2000 Movements/Day |
| Impact Resistance (Without Deformation) | 30.000 J |
| Breakout Resistance | 150.000 J |
| Operating Temperature | -40 °C +70 °C (for temperatures lower than -10 °c use the heating resistance) |
