J275 F 2K

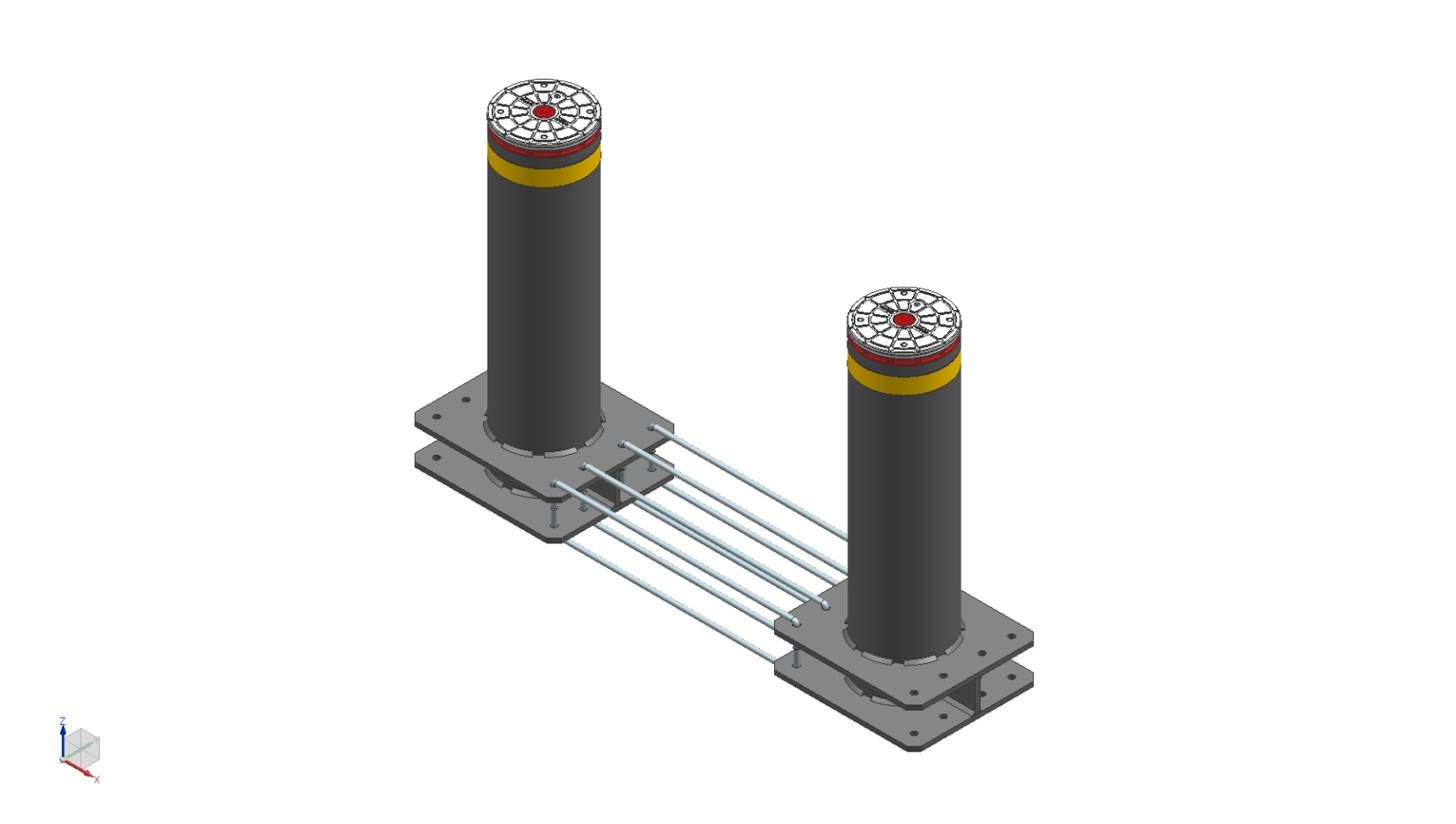

J275 F 2K - Image 2

J275 F 2K

Our strength is the wide range: whatever the need, ranging from residential security installation to the highest level of anti-terrorism securities, we have it all.
We offer wide range of bollards that goes beyond just the function of protection, it enhances the appeal of the architecture and the streetscape. Our bollards models are available in different materials, designs , protection level meant for protecting diverse type of premises. We can offer customized solutions matching the properties architecture & landscape. Our products and accessories always provide for the possibility to find the ideal solution to satisfy any needs regarding management, safety, and design.

Category:

Description

J275 2K Range is recommended for vehicular access control and perimeter protection in critical areas. Able to arrest a 6.800kg truck driving at 50km/h in dual installation

  1. Power supply and wiring not required
  2. “Shallow Mounted” product: very low excavation depth needed
  3. Total aesthetic consistency with other retractable bollards (HA); perfect for mixed installations

Technical Specifications

J Series Model  J275F_2K_H800  J275F_2K H800 INOX
Cylinder height from ground [mm]  800  800
Cylinder diameter [mm]  275  275
Cylinder material  Steel SJ235JR EN 10219 (7mm thick)  AISI 316L satin finish. (6mm thick)
Cylinder surface  Cataphoresis and polyester powder painted

Dark grey metall. RAL 7021

 Satin finishing
Head  Aluminium RAL 9006  Aluminium RAL 9006
Reflective strip height [mm]  55  55
Reflective strip colour  Yellow  Yellow
Break in resistance [J]  656.000

(2 units installations)

 656.000

(2 units installations)
Total weight [kg]  110   110
Underground product dimensions WxDxH  [mm]  500 x 500 x 150  500 x 500 x 150
Required excavation dimensions WxDxH  [mm]  1000 x 1000 x 270  1000 x 1000 x 270
