Description
Tyre Killers are composed by heavy duty spikes that rise from the ground; they operate like an access control barrier by preventing the passage of unauthorized vehicles or allowing the exit from a supervised area. They can be installed with other access control elements (for example bollards, road blockers or gates) in order to achieve an access control check-point at the highest level of security. Many optional items are available for in order to configure each individual system.

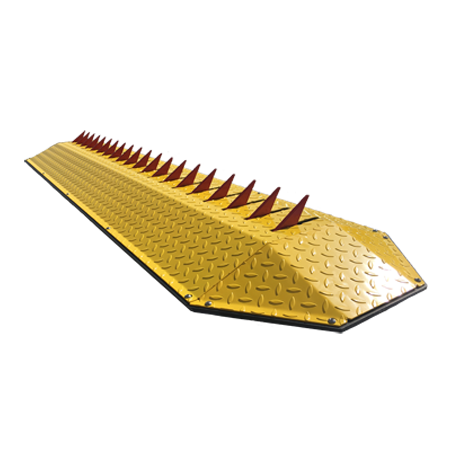

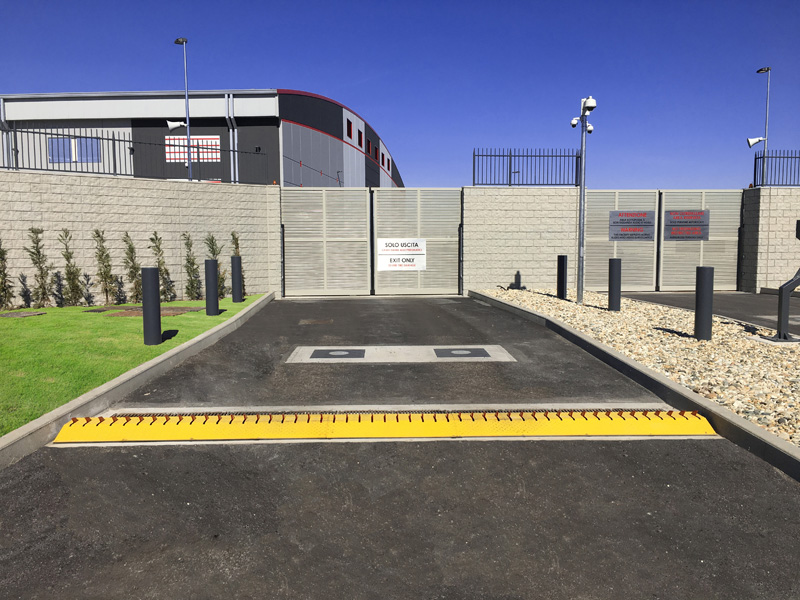

PILOMAT TYRE KILLER SMALL is a security system with steel spikes 80 mm high. It uses mechanical movement and counterweights and is used to allow only the exit of vehicles from a supervised area but to prevent the entrance to unauthorized ones; it is typically used for perimeter protection at the exit of companies, hotels, convention centers and similar. The lengths available are : 2.000 mm, 3.000 mm, 4.000 mm, 5.000 mm and 6.000 mm.
Technical Specifications
| Blocking Spikes Height from The Ground Level | 61mm |
| Tyre Killer Width | 2m – 3m – 4m – 5m – 6m |
| Distance Between Blocking Spikes | 105mm (i.e. TK SMALL 2m: 20 Blocking Spikes) |
| Blocking Spikes Thickness | 10mm |
| Total Dimension | 2m Lengths: 2100x630x71mm |
| Terminal Sector Dimension | 195x630x70mm |
| Tyre Killer Structure Finish | Anti-Corrosion Treatment – Yellow Traffic Standard Painting |
| Blocking Spike Finish | Anti-Corrosion Treatment – Red Standard Painting |
| Class of Load | U.N.I. C250 Regulation |
| Type of Use | Intensive |
| Lock in Low Position for Free Transit | Optional |
| Kit Of 2 Semicircular Terminal Modules (*) | Optional |
| Voltage for Control Unit | 230/400Vac (+/- 10%) 50/60HZ (Optional) |
(*) the two semicircular sectors should be used ti increase the safety of vehicles in movement (*)
| Model | L(mm) |
| Tyre Killer 2m | 2490mm |
| Tyre Killer 3m | 3540mm |
| Tyre Killer 4m | 4590mm |
| Tyre Killer 5m | 5640mm |
| Tyre Killer 6m | 6690mm |
