275/K4 900A

275/K4 900A

Our strength is the wide range: whatever the need, ranging from residential security installation to the highest level of anti-terrorism securities, we have it all.
We offer wide range of bollards that goes beyond just the function of protection, it enhances the appeal of the architecture and the streetscape. Our bollards models are available in different materials, designs , protection level meant for protecting diverse type of premises. We can offer customized solutions matching the properties architecture & landscape. Our products and accessories always provide for the possibility to find the ideal solution to satisfy any needs regarding management, safety, and design.

Category:

Description

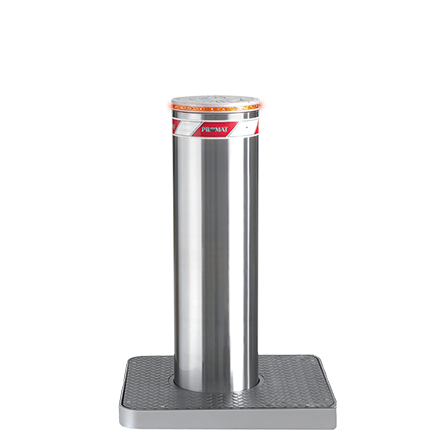

The range of PILOMAT K4/M30 automatic bollards includes three models tested to ASTM standard, offering different security rating. These products are designed to assure the anti-terrorism defense.

The 275/K4 900A bollard is recommended for use in any security sensitive site like company driveways, industrial driveways, research centres, embassies, police facilities, military bases, etc..

The 275/K4 900A is available with a large number of optional accessories that allow you to customize your system according to your security needs.

Technical Specifications

Cylinder Material  S355JR NORMAL STEEL – X5CrNi 18-10 (AISI 304) STAINLESS STEEL X5CrNiMo 17-12-12 ( AISI 316) STAINLESS STEEL
Cylinder Diameter  273mm
Cylinder Height  900mm
Cylinder Normal Steel Thickness  10mm
Movement Principle  Hydraulic
Cylinder Normal Steel Finish  Anti-Corrosion Treatment – Grey Anthracite Standard Painting
Cylinder Stainless Steel Finish  Grey Anthracite Standard Painting Or Brushing
Other Cylinder Finish  Ribs On Cylinder’s Surface
Reflecting Adhesive Strip  Standard – Height 55mm
Rising Speed  10cm/s (Optional: E.F.O. Rising Time 1”)
Lowering Speed  26cm/s
Manual Emergency Lowering  Standard
Connection Line To Control Unit  Standard 10m (Max. Length 80m – With Heating Resistance Max. 50m)
Voltage For Control Unit  230/400VAC (+/- 10%) 50/60HZ
Hydraulic Pump  Built-in into the bollard
Protection Class  IP67
Type Of Use  Intensive – 2.000 Cycles/Day
Life Units  3.000.000 Cycles
Impact Resistance (Without Deformation)  250.000 J
Breakout Resistance  750.000 J
Nominal Operating Temperature  -40 °C +70 °C (for low temperatures see the heating resistance)
